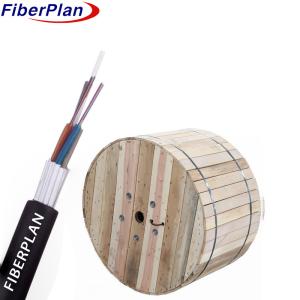

Multi Tube Cable With Water-Blocking Tape For High-Performance Data Tran-
smission GYFTY
Description
This fiber optic cable prioritizes protection: delicate optical fibers are shielded within a flexible and
robust loose tube made of high-strength plastic. These tubes, filled with a specialized water-resistant
compound, ensure fiber integrity by preventing moisture damage, enabling uninterrupted optical
transmission even in adverse conditions. The core, constructed of Fiber Reinforced Plastic (FRP),
offers strength without metallic interference. Surrounding this core, tightly stranded tubes and fillers
form a durable circular core. Further shielding against water is provided by water-blocking tape
wrapped around the cable core. Covered by a resilient polyethylene (PE) sheath, the cable is fortified
against external elements, designed to deliver dependable data transmission across diverse
environmental conditions.
Application
1. Outdoor Distribution Adaptation: Designed for outdoor use, capable of enduring diverse weather
conditions and environmental factors, ensuring reliable data transmission in outdoor settings.
2. Trunk Power Transmission: With its sturdy construction and capacity for high-power applications,
this cable efficiently supports trunk power transmission systems within expansive networks.
3. High Electromagnetic Interference Environments: Well-suited for areas with substantial electromagnetic
interference, this cable minimizes susceptibility to such interference, ensuring stable and uninterrupted
data transmission in demanding environments.
Characteristic
1. Mechanical Strength & Temperature Resilience: Consistent functionality across temperature
fluctuations and notable mechanical resilience ensure reliable performance.
2. Hydrolysis-Resistant Loose Tube: Offers durability and strength, resisting hydrolysis for extended
performance in moist conditions.
3. Specialized Fiber Protection: Safeguards enclosed fibers with a specialized filling compound within
the tube.
4. Crush Resistance & Flexibility: Balances pressure resistance with flexibility, facilitating versatile
installations.
5. Enhanced External Protection: The filling compound within the loose tube enhances defense against
environmental factors, bolstering overall durability and reliability.
Structure details
| No. of fiber | 6F | 12F | 24F | 36F | 48F | 72F | 96F | 144F |
| No. of tube | 1 | 2 | 4 | 3 | 4 | 6 | 8 | 12 |
| Fiber per tube | 6 | 6 | 6 | 12 | 12 | 12 | 12 | 12 |
| No. of filler rod | 4 | 3 | 1 | 2 | 1 | 0 | 0 | 0 |
| Tube diameter (±0.05mm) | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 |
Thickness of loose tube
(±0.1mm) | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| Nom. out diameter (±0.1mm) | 8.6 | 8.6 | 8.6 | 8.6 | 8.6 | 9.2 | 10.8 | 13.4 |
Nom. jacket thickness
(±0.05mm) | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.7 | 1.7 |
| Loose tube | Material | PBT | Color | Standard spectrum |
| Filling rod | Material | PP | Color | Black |
| Tube filling | Material | Filling compound |
| Central strength member | Material | FRP | Diameter | 1.5mm (6 - 48F) |
| 2mm (72 - 144F) |
| Layer | PE (for 96C -144C only) |
| Water blcoking system | Material | water blocking tape |
| Rip cord | Type | 1110*2 |
| Out sheath | Material | MDPE | Color | Black |
Mechanical and environment performance
| Tensile strength | Long term(N) | 600N |
| Short term(N) | 1500N |
| Crush load | Long term (N/100mm) | 300N/100mm |
| Short term (N/100mm) | 1000N/100mm |
| Bending radius | Dynamic (mm) | 20D |
| Static (mm) | 10D |
| Storage Temperature | -20℃～+70℃ |
| Installation Temperature | -10℃～+60℃ |
Fiber Performance
| Fiber style | Unit | SM G652D | MM 50/125 | MM 62.5/125 |
| Condition | mm | 1310/1550 | 850/1300 | 850/1300 |
| Attenuation | dB/km | ≤0.36/0.22 | ≤3.0/1.0 | ≤3.0/1.0 |
| Cladding diameter | um | 125±0.2 | 125±0.2 | 125±0.2 |
| Cladding non-circularity | % | ≤1.0 | ≤1.0 | ≤1.0 |
| Coating diameter | um | 242±3 | 242±3 | 242±3 |
